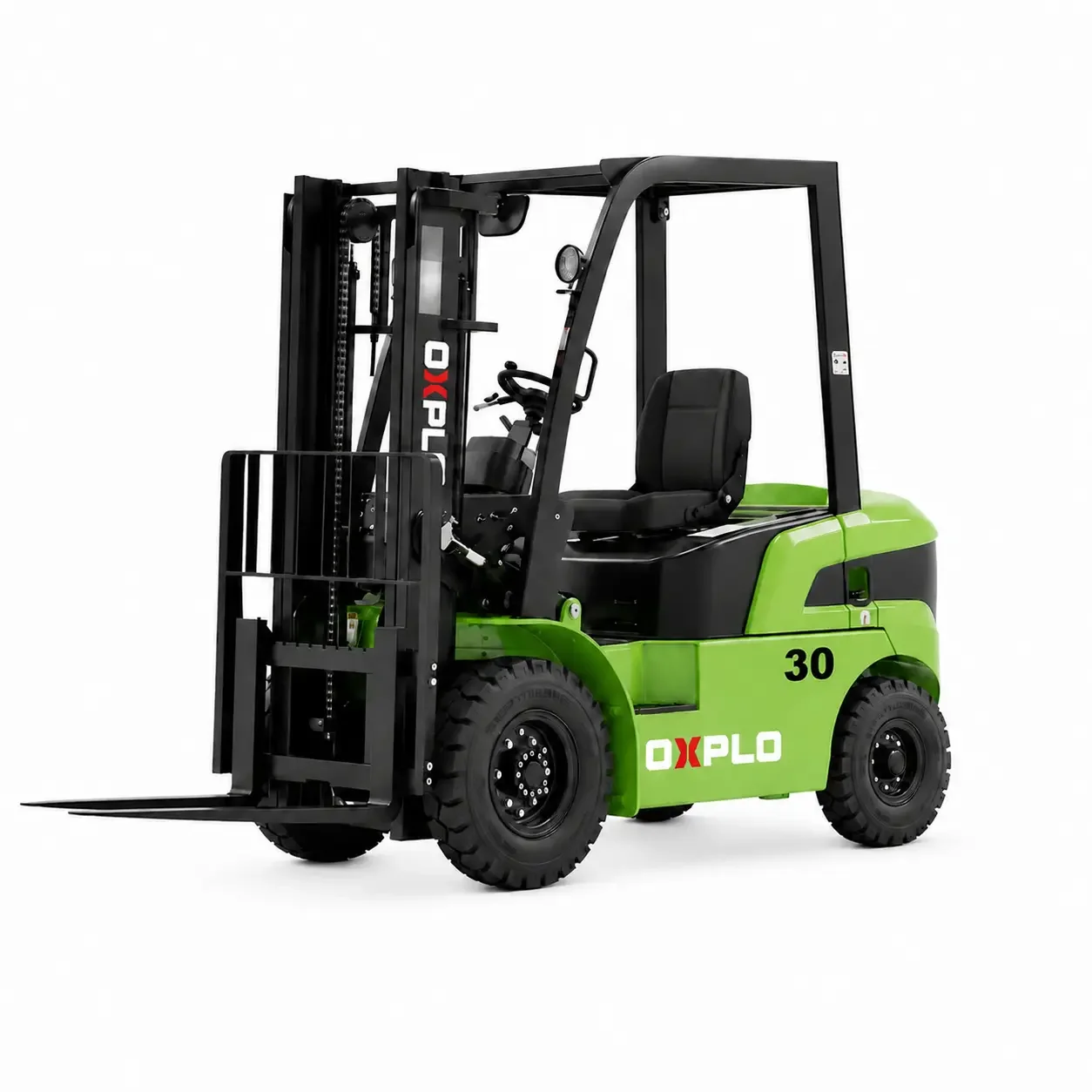

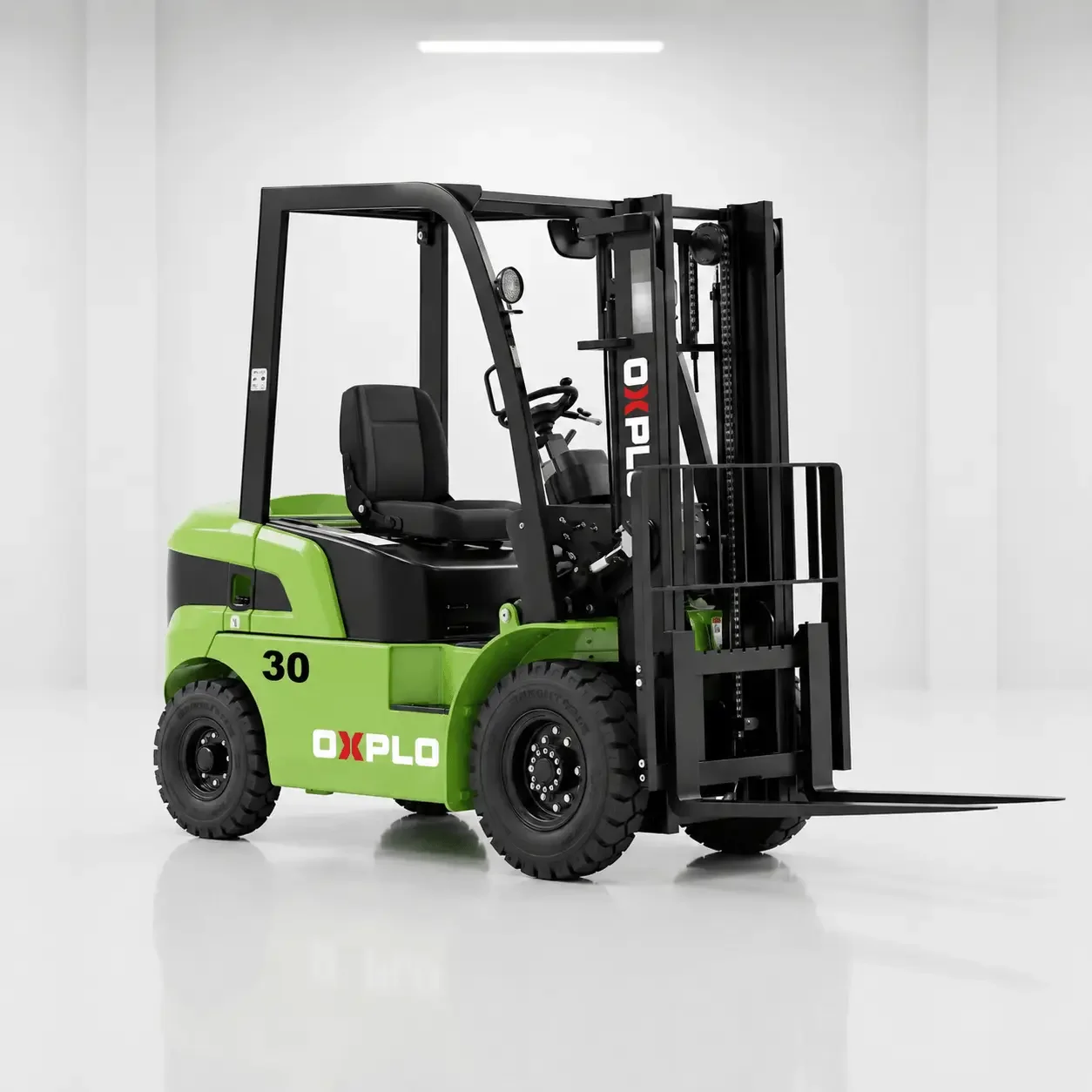

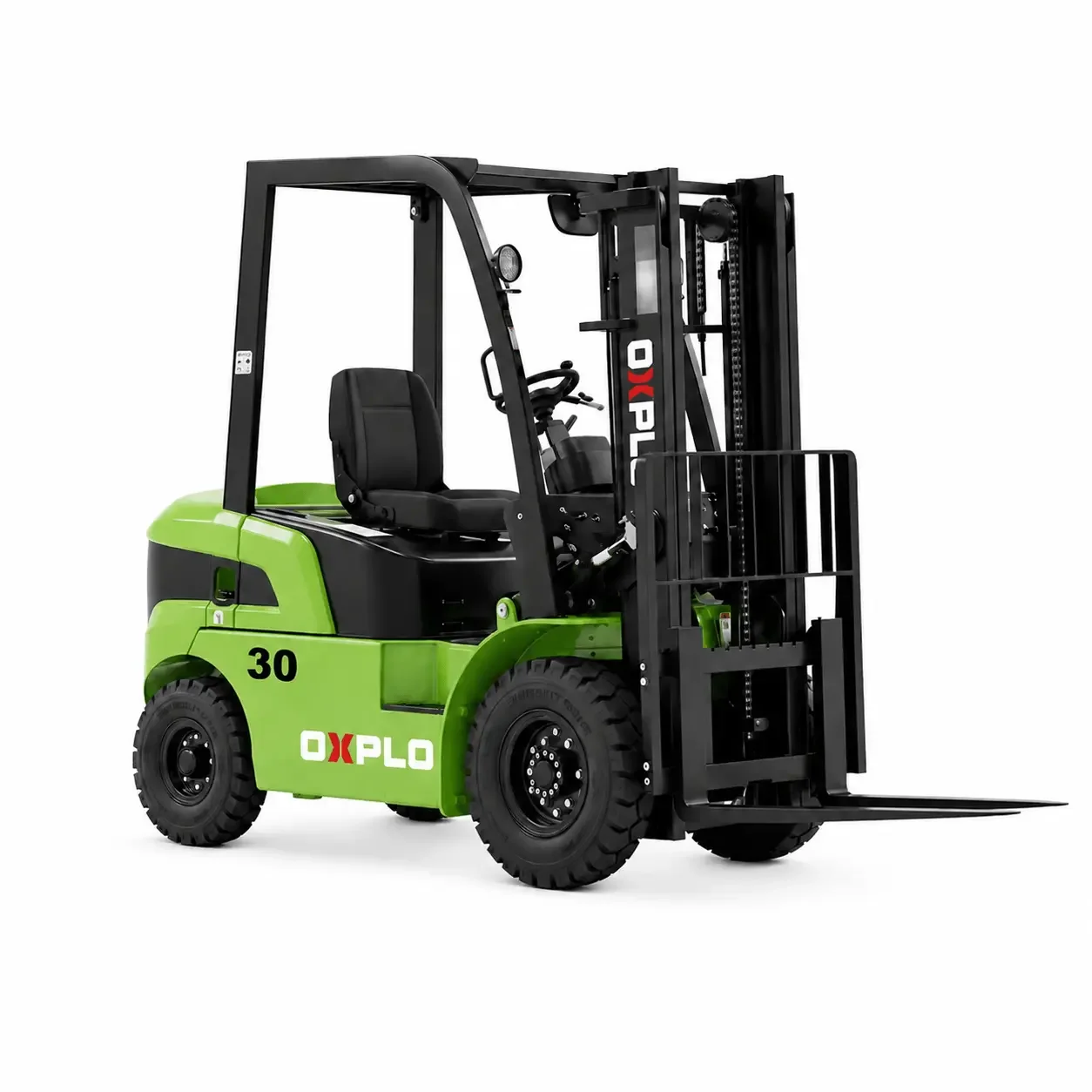

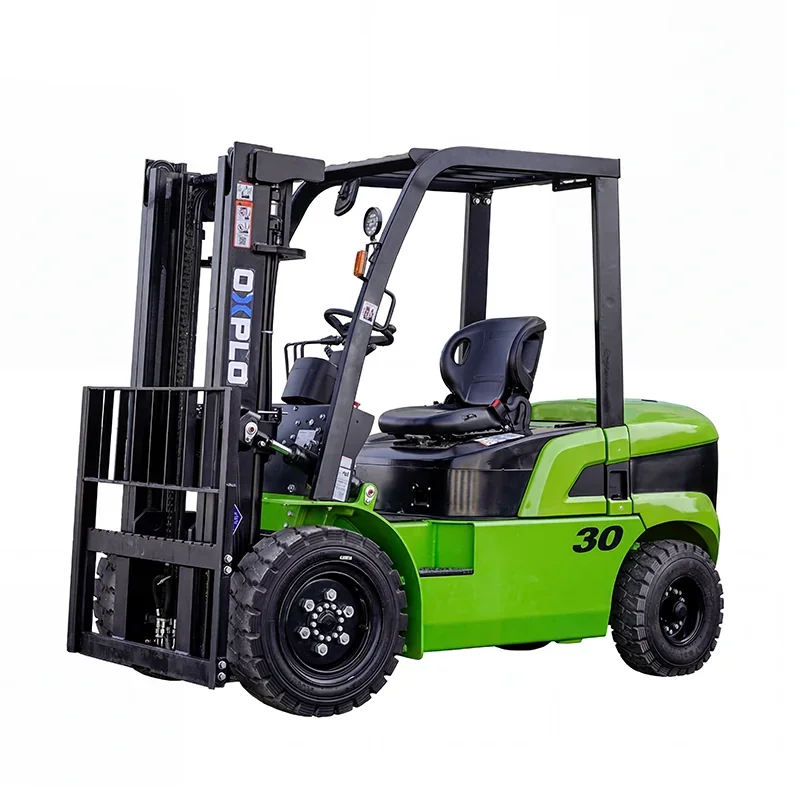

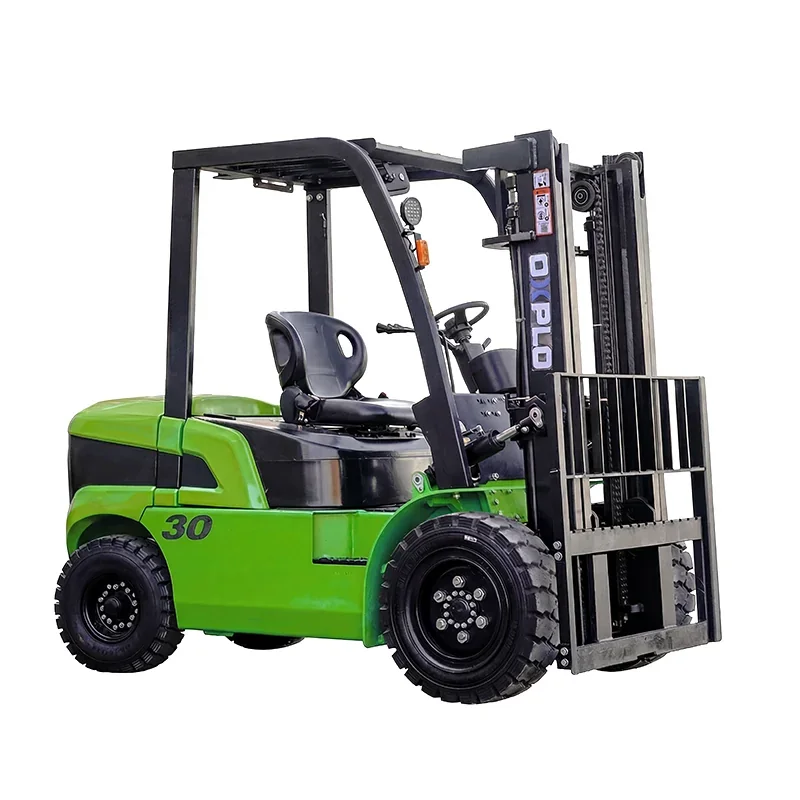

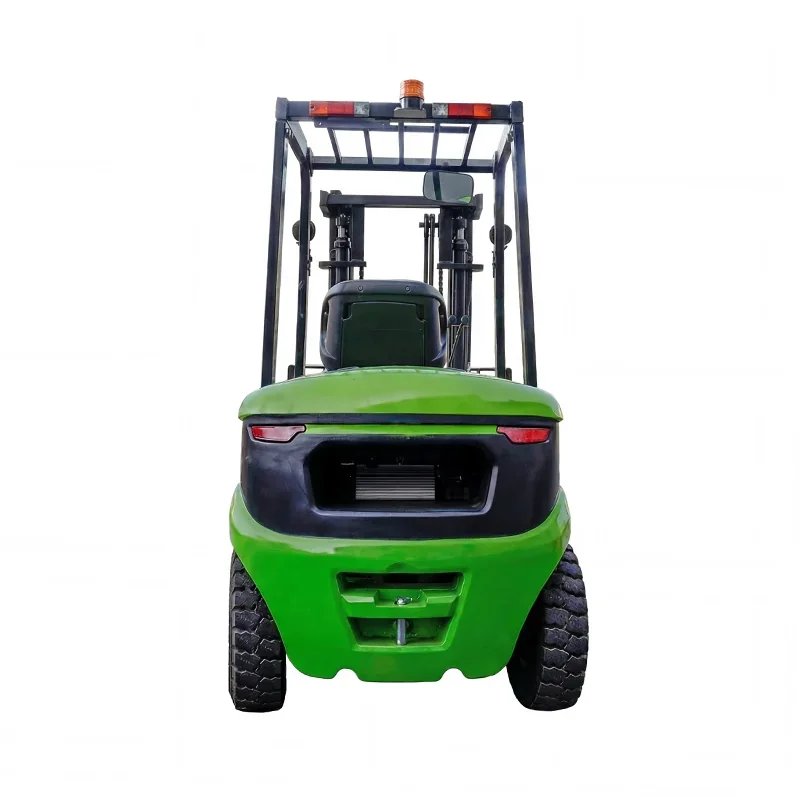

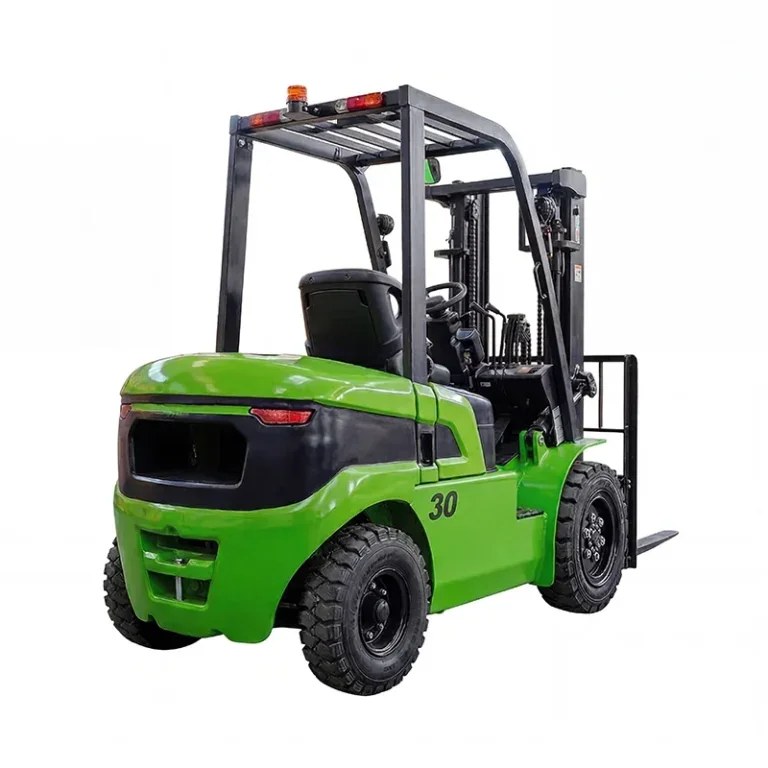

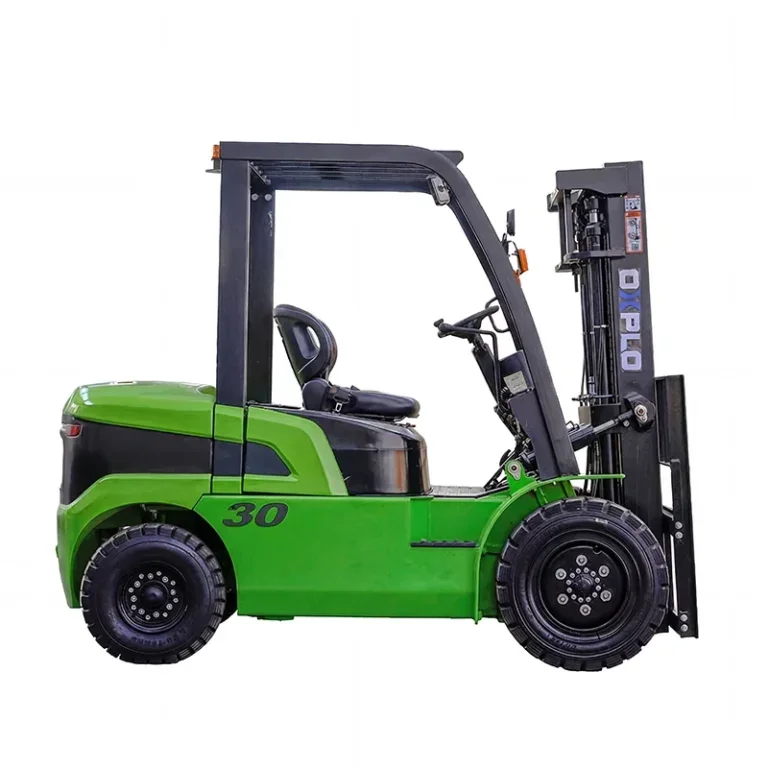

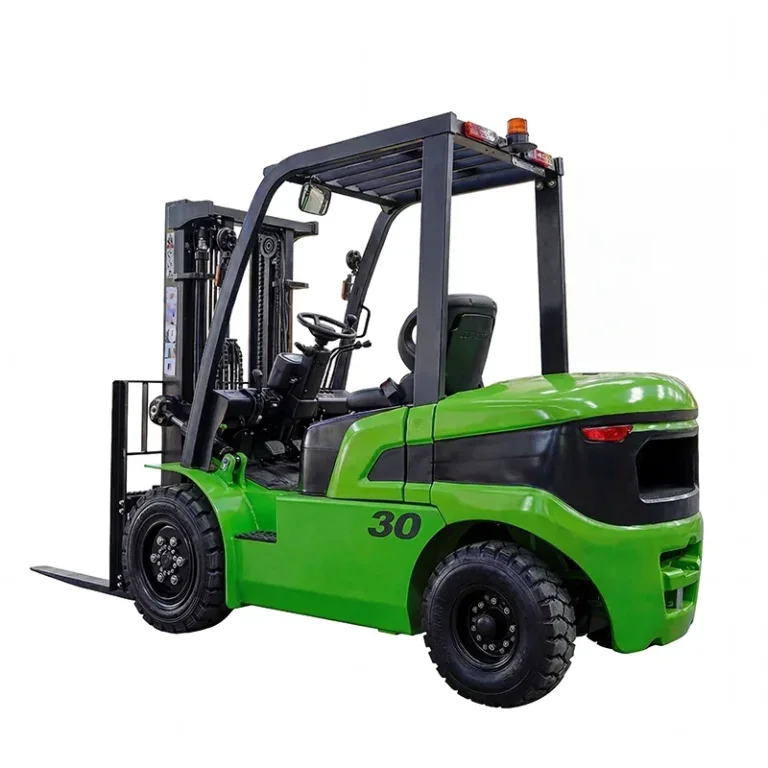

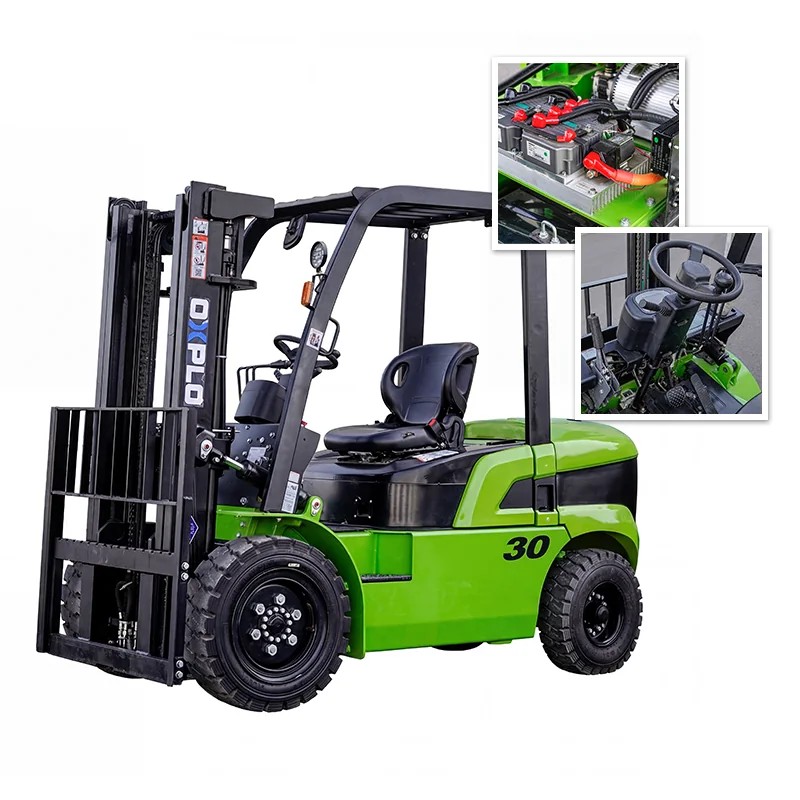

OXPLO CPD30 Electric Forklift
The OXPLO CPD30 is a 3-ton electric counterbalance forklift designed for demanding material-handling operations in warehouses, logistics centers, manufacturing facilities and other industrial environments.
Powered by a 76.8V/280Ah lithium-ion battery, the CPD30 combines higher load capacity with smooth acceleration, responsive lifting, quiet operation and zero tailpipe emissions. It is a practical solution for businesses that require heavier pallet handling without the exhaust emissions and routine engine maintenance associated with internal-combustion forklifts.
DETAILS
Core Performance Features
76.8V/280Ah Lithium Battery System
The CPD30 is equipped with a 76.8V/280Ah lithium-ion battery system that provides stable power for daily lifting and transport operations.
The intelligent Battery Management System monitors important battery conditions such as voltage, temperature and state of charge. It helps protect the battery against overcharging, over-discharging and overheating.
Flexible charging arrangements can be selected according to the customer’s shift schedule. Actual operating and charging times depend on load weight, lifting frequency, travel distance, operating temperature and charger configuration.
Clean and Quiet Operation
The electric drive system produces no tailpipe emissions and operates at a lower noise level than a diesel forklift. This makes the CPD30 suitable for:
- Indoor warehouses
- Logistics and distribution centers
- Manufacturing facilities
- Food and beverage storage
- Building-material warehouses
- Industrial production and assembly areas
- Other noise-sensitive working environments
For cold-storage applications, the required battery, hydraulic oil and electrical configuration should be confirmed according to the actual operating temperature.
Maneuverability for Industrial Operations
The CPD30 combines its 3-ton lifting capacity with responsive steering and controlled low-speed performance, helping operators position heavier pallets accurately in warehouses and loading areas.
- Minimum outer turning radius: 2,515mm
- Minimum right-angle stacking aisle width: 2,545mm
- Overall forklift width: 1,225mm
These dimensions provide practical maneuverability for a forklift in the 3-ton capacity class.
Actual aisle requirements may vary depending on pallet dimensions, fork length, mast type, attachment and required safety clearance. Customers should confirm their warehouse layout before selecting the forklift configuration.
Stable Lifting and Ramp Performance
The CPD30 has a rated lifting capacity of 3,000kg at a 500mm load center. It is designed for transporting, stacking, loading and unloading heavier pallets and industrial materials.
Under specified test conditions, its maximum gradeability is 15% with a full load and 18% without a load. This allows the forklift to handle suitable warehouse ramps and paved industrial yards.
The CPD30 is primarily intended for level or paved working surfaces. Muddy ground, deep gravel and severely uneven construction or agricultural sites generally require a dedicated rough-terrain forklift.
Operator Comfort and Safety
The operator area is designed to support comfortable and controlled daily operation. Clearly arranged controls, good mast visibility and responsive steering help the operator position heavier loads accurately.
Depending on the selected configuration, optional safety equipment may include warning lights, reversing alarms, cameras and other operator-assistance features.
A digital instrument display provides essential operating information and helps the operator monitor forklift and battery conditions during operation.
Simplified Maintenance
Compared with an internal-combustion forklift, the CPD30 eliminates many routine engine-maintenance items, including engine oil changes, fuel-filter replacement and battery watering.
The accessible battery compartment allows technicians to inspect the lithium battery, controller and electrical connections more conveniently. The Battery Management System also helps identify abnormal battery conditions and supports preventive maintenance.
However, regular inspection is still required for:
- Battery and charging system
- Tires and wheel components
- Brakes and steering system
- Hydraulic oil and hoses
- Mast rollers and lifting chains
- Forks and attachments
- Electrical connections
This simplified service structure can reduce the daily maintenance workload and help improve equipment availability.
Durable Industrial Construction
The CPD30 uses a reinforced mast, stable chassis structure and heavy-duty pneumatic tires to support frequent industrial material handling.
- Front tire size: 28×9-15
- Rear tire size: 6.50-10
- Maximum lifting speed with load: 450mm/s
- Maximum travel speed with load: 18km/h
- Total forklift weight: 4,190kg
The chassis and lifting system are designed to support repeated handling of heavier pallets while maintaining stable operation throughout the working cycle.
Configurations and Attachments
The CPD30 can be configured according to the customer’s load, lifting height and working environment. Available options may include:
- Different mast heights
- Two-stage or three-stage mast
- Side shifter
- Fork positioner
- Extended forks
- Additional hydraulic functions
- Warning and safety equipment
- Alternative tire configurations
The weight and load center of an attachment may reduce the forklift’s residual lifting capacity at height. OXPLO recommends confirming the complete working conditions before selecting the mast and attachment.
For loads approaching 3,000kg, particular attention should be given to the actual load center, lifting height, load dimensions and attachment weight.
OXPLO Support in the Philippines
OXPLO provides forklift selection assistance, technical support and spare-parts services for customers in the Philippines.
Customers can provide their maximum load weight, required lifting height, pallet dimensions, aisle width, daily operating hours and delivery location. The OXPLO team will then recommend a suitable forklift, battery, mast and attachment configuration.
Frequently Asked Questions
Q1: How long can a OXPLO electric forklift work on one charge?
A1: Operating time depends on battery capacity, load weight, lifting frequency, travel distance, gradients, temperature and operator behavior. OXPLO can estimate the expected working time after reviewing the customer’s actual duty cycle.
Q2: Is the CPD30 suitable for continuous operation?
A2: It can support extended operating schedules when the battery capacity and charging plan are correctly matched to the customer’s shift arrangement. Opportunity charging or another charging arrangement may be recommended for longer working hours.
Q3: Can the CPD30 electric forklift be used outdoors?
A3: It can be used on suitable level and paved surfaces when weather and equipment conditions permit. For mud, deep gravel, potholes or uneven agricultural and construction sites, a rough-terrain forklift is generally more appropriate.
Q4: Does the CPD30 require maintenance?
A4: Yes. Although it eliminates many diesel-engine maintenance items, the battery, charger, brakes, tires, hydraulic system, mast, forks and electrical connections still require regular inspection.
Q5: Is a 3-ton electric forklift suitable for my loads?
A5: The decision should be based on more than maximum load weight. Load dimensions, load center, required lifting height, attachments and residual capacity must also be considered.
The 3,000kg rating applies under the specified load-center and mast conditions. If the load center exceeds 500mm, the load is unusually long or the forklift uses a high mast or heavy attachment, the available lifting capacity may be reduced.
Q6: Can the CPD30 operate in narrow warehouse aisles?
A6: The CPD30 has a minimum outer turning radius of 2,515mm and a minimum right-angle stacking aisle width of 2,545mm. Actual space requirements depend on pallet dimensions, fork length, attachment and required safety clearance.
Q7: Are spare parts and after-sales services available in the Philippines?
A7: OXPLO provides local technical support and maintains commonly used parts for selected models. Parts availability and service response times should be confirmed according to the machine model and customer location.
Request a Forklift Recommendation
Send OXPLO the following information to receive a suitable forklift recommendation:
- Maximum load weight
- Required lifting height
- Pallet or load dimensions
- Minimum aisle width
- Indoor or outdoor application
- Daily operating hours
- Delivery location in the Philippines
Our team will recommend the appropriate forklift capacity, battery configuration, mast and attachments for your operation.
