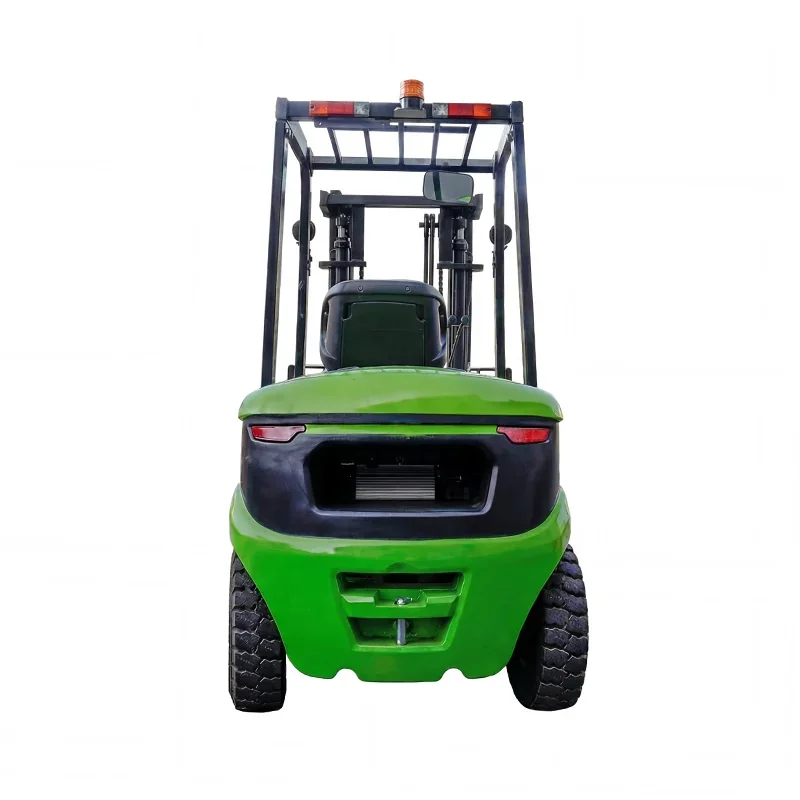

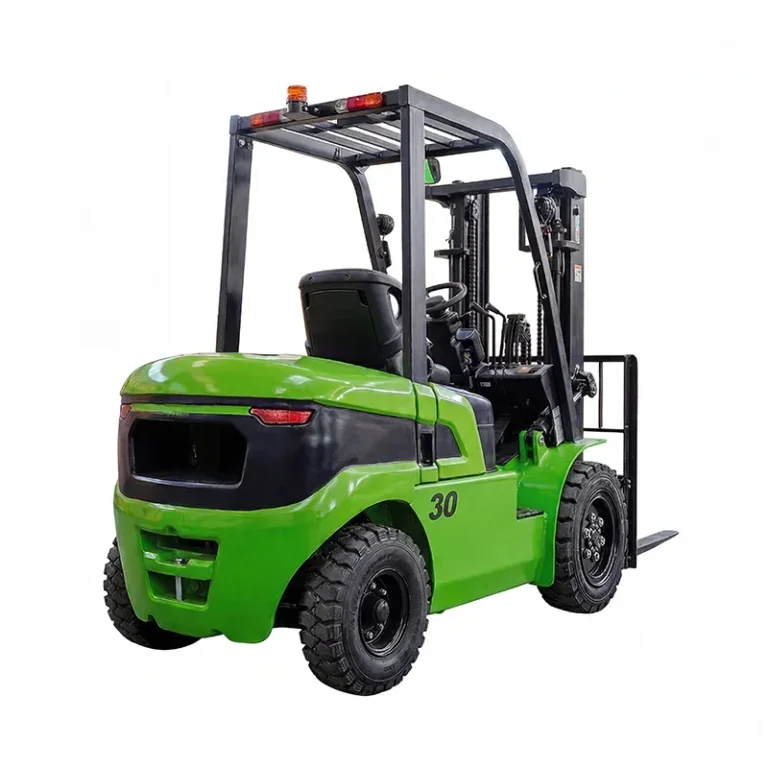

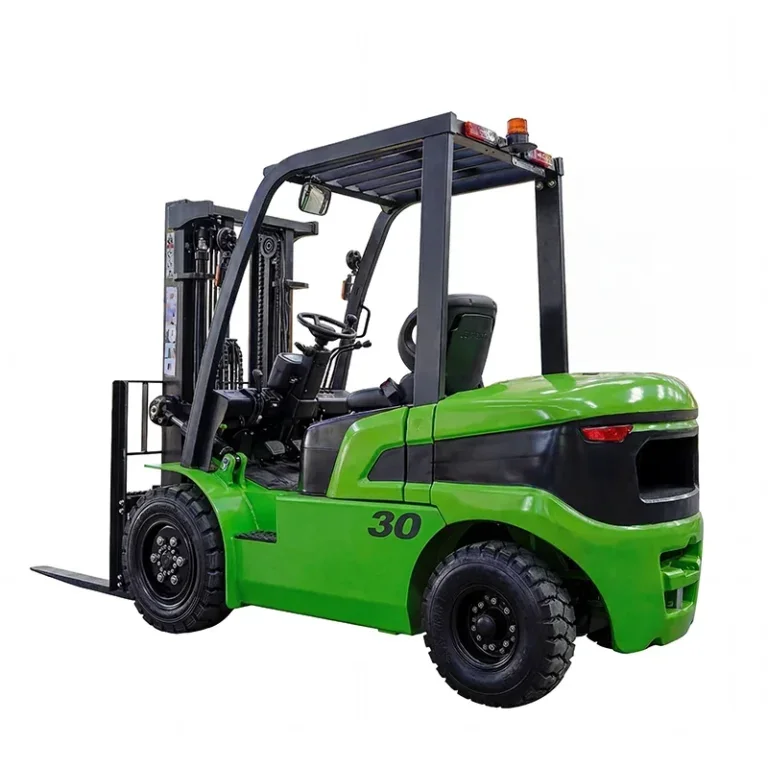

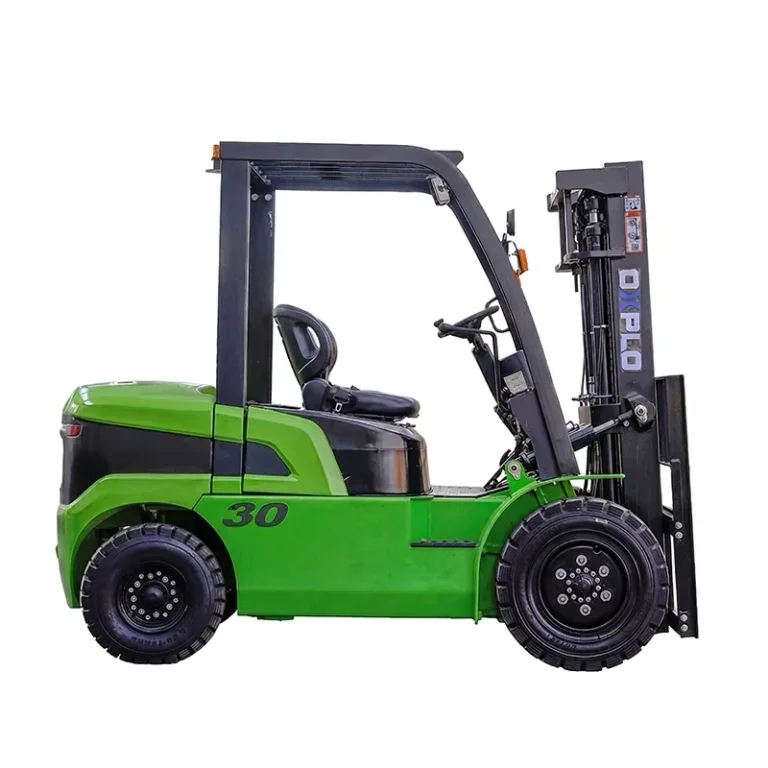

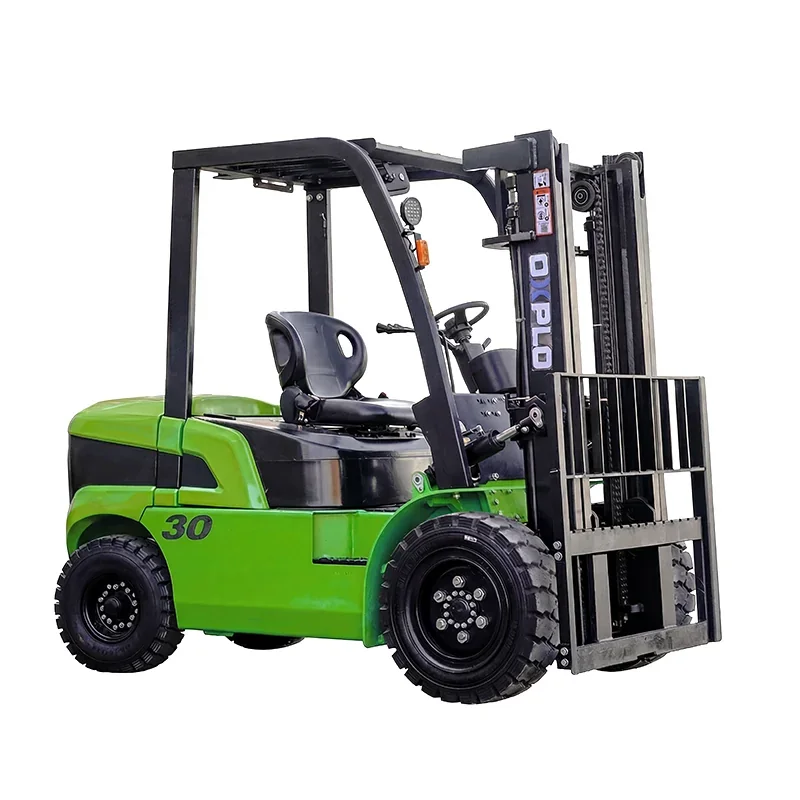

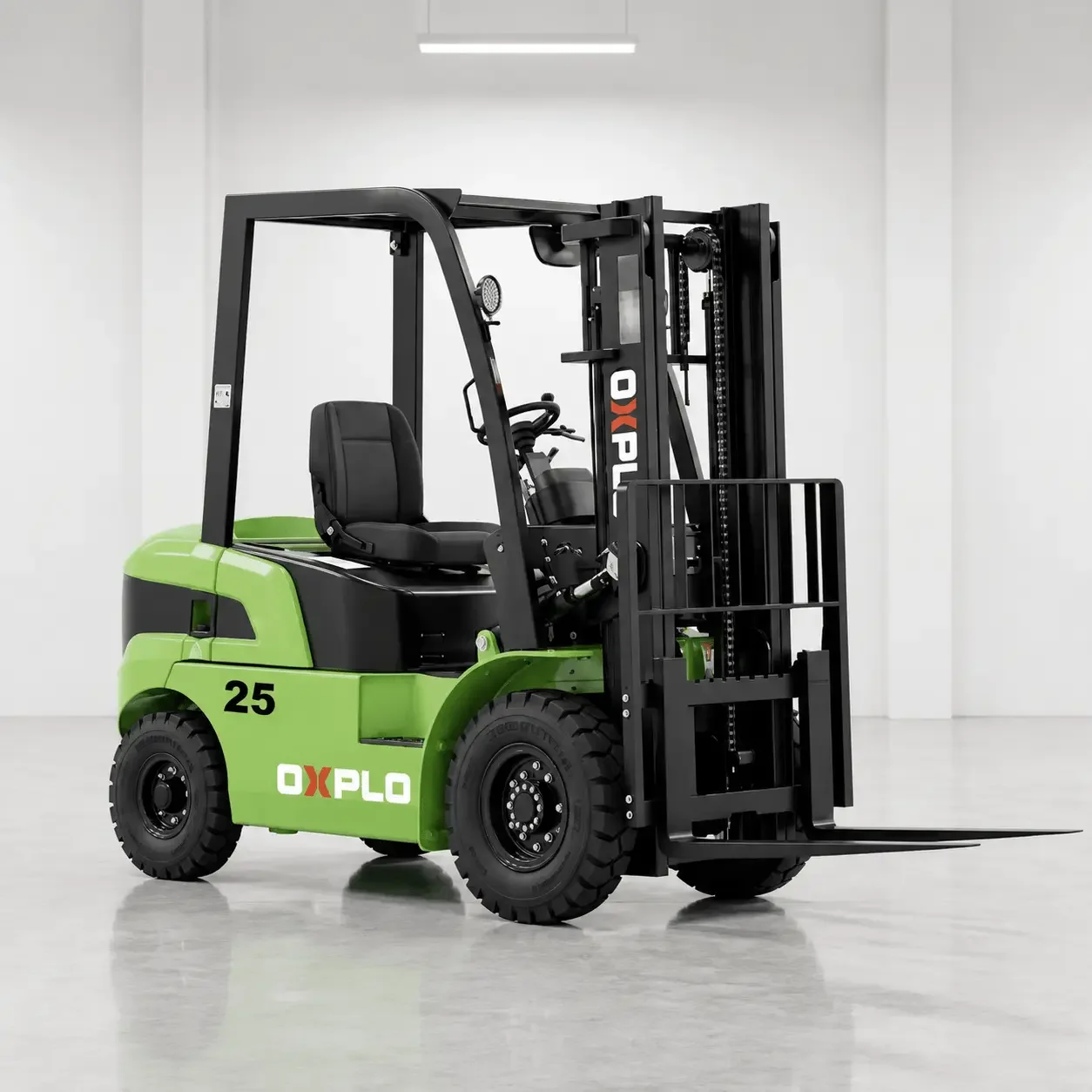

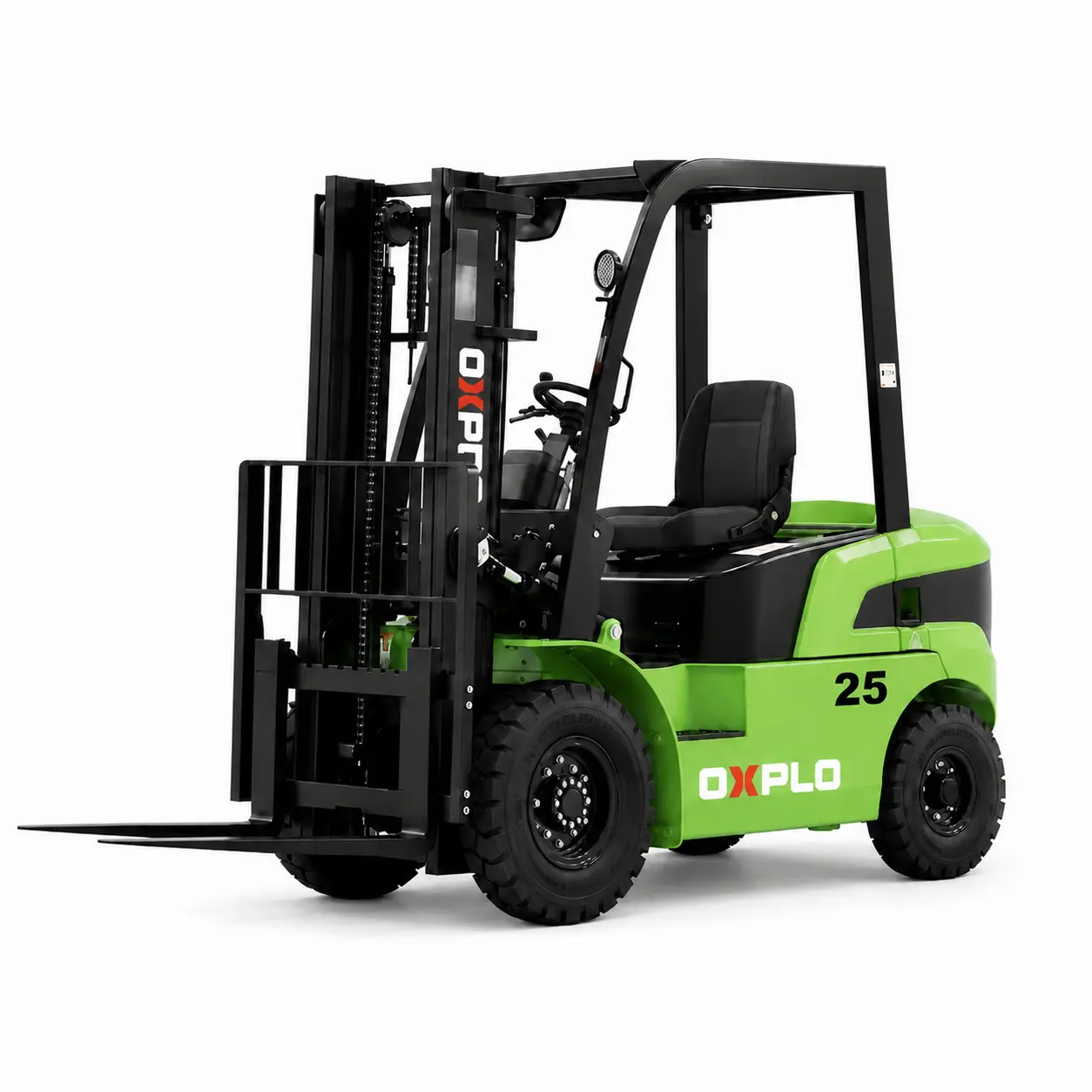

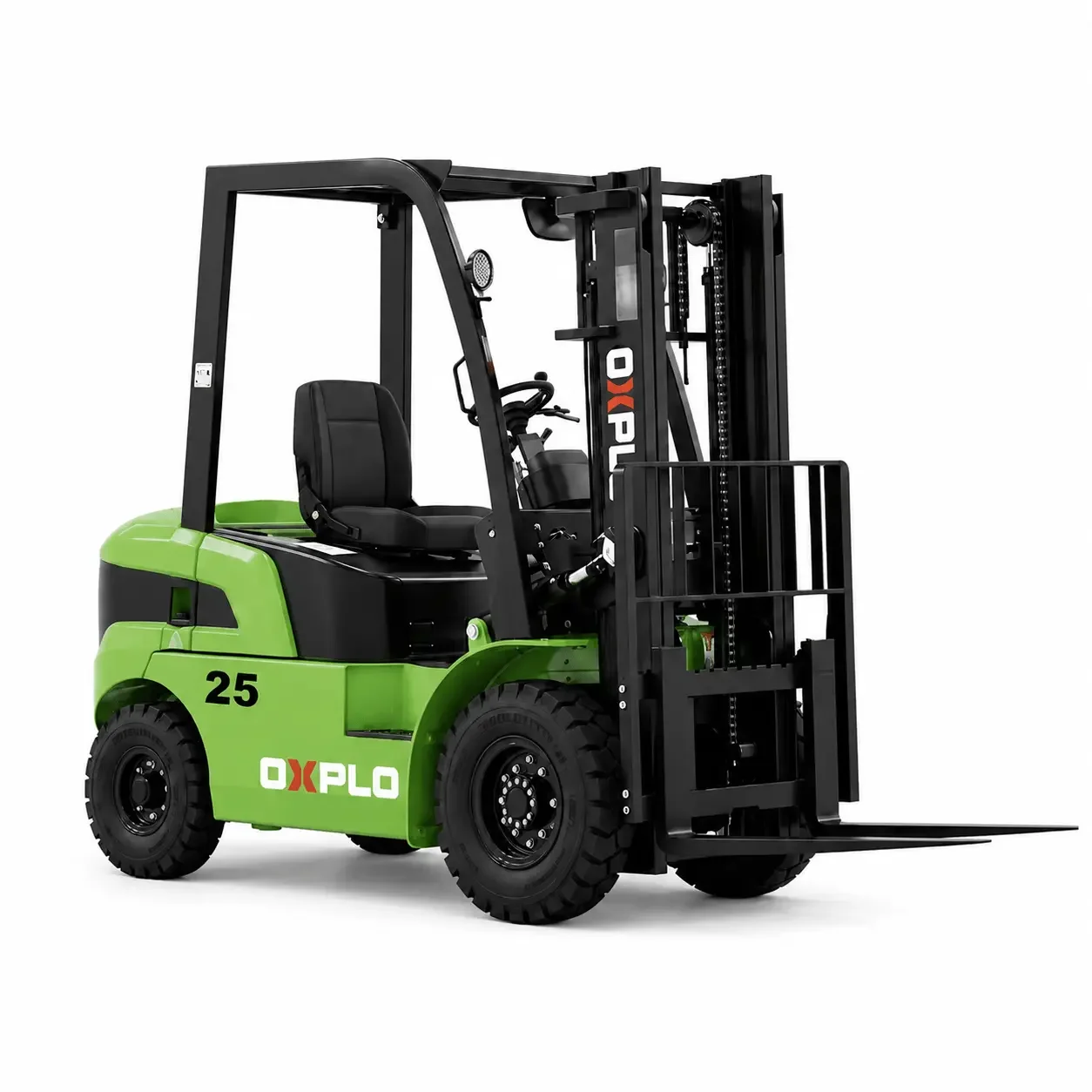

OXPLO CPD25 Electric Forklift
The OXPLO CPD25 is a 2.5-ton electric counterbalance forklift designed for efficient material handling in warehouses, logistics centers, manufacturing plants, and other indoor industrial environments.
Powered by a 76.8V/280Ah lithium-ion battery, the CPD25 offers smooth acceleration, responsive lifting, quiet operation, and zero emissions. Its compact size, precise steering, and simplified maintenance make it an ideal alternative to traditional internal combustion forklifts.
DETAILS
Key Performance Features
76.8V/280Ah Lithium Battery System
The CPD25 is equipped with a 76.8V/280Ah lithium-ion battery system, providing stable power for daily lifting and transport operations.
The intelligent battery management system monitors key battery conditions such as voltage, temperature, and charging status, helping to prevent overcharging, over-discharging, and overheating.
Charging options can be flexibly selected to suit customer shift schedules. Actual operating time and charging time depend on load weight, lifting frequency, travel distance, operating temperature, and charger configuration.
Clean and Quiet Operation
The electric drive system produces no exhaust emissions and operates at significantly lower noise levels than diesel forklifts. Therefore, the CPD25 is suitable for:
* Indoor warehouses
* Distribution centers
* Manufacturing plants
* Food and beverage warehouses
* Retail and supermarket warehouses
* Other noise-sensitive working environments
For cold storage applications, the required battery, hydraulic fluid, and electrical configuration should be determined based on the actual operating temperature.
Maneuverability in Warehouse Operations
Heavy-duty pallet handling doesn’t necessarily mean difficult maneuverability. The CPD25 combines a compact body, a responsive steering system, and controllable low-speed performance.
Minimum external turning radius: 2,240 mm
Minimum right-angle stacking aisle width: 2,280 mm
Overall forklift width: 1,164 mm
These dimensions help the forklift operate efficiently in warehouse aisles and space-constrained storage areas.
Actual aisle requirements may vary depending on pallet size, fork length, mast type, attachments, and required clearances. #Stable Lifting and Ramp Performance
The CPD25 has a rated lifting capacity of 2,500 kg (load center distance 500 mm) and is designed for pallet transport, stacking, and loading operations.
Under specified test conditions, its maximum gradeability is 17% fully loaded and 18% unloaded. This allows the forklift to handle suitable warehouse ramps and paved industrial sites.
The CPD25 is primarily suitable for flat or paved operating surfaces. Muddy surfaces, thick gravel, and severely uneven construction sites typically require dedicated off-road forklifts.
Operator Comfort and Safety
The operating area is designed to support comfortable and controlled daily operation. A clear control layout, good mast visibility, and a responsive steering system help the operator accurately position goods.
Depending on the selected configuration, optional safety equipment may include warning lights, a back alarm, a camera, and other operating assistance features.
A digital instrument display provides essential operating information and helps the operator monitor the forklift and battery status during operation.
Simplified Maintenance
Compared to internal combustion forklifts, the CPD25 eliminates many routine engine maintenance tasks, such as oil changes, fuel filter replacements, and water top-ups.

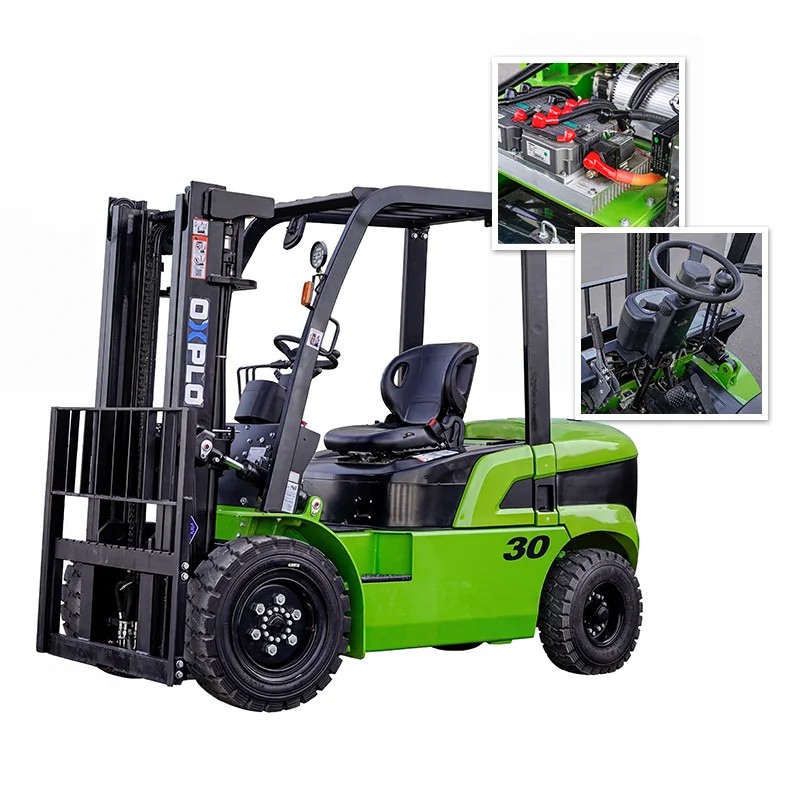

The easily accessible battery compartment allows technicians to more easily inspect the lithium-ion battery, controllers, and electrical connections. The Battery Management System (BMS) also helps identify abnormal battery conditions and supports preventative maintenance.
However, the forklift still requires regular inspection of the following components:
* Battery and charging system
* Tires and wheel hubs
* Brakes and steering system
* Hydraulic fluid and hoses
* Mast rollers and lifting chain
* Forks and attachments
* Electrical connections
This simplified maintenance structure reduces maintenance workload and helps improve equipment availability.
Rugged Industrial Construction
The CPD25 features a reinforced mast, stable chassis structure, and heavy-duty pneumatic tires, making it suitable for everyday industrial material handling.
Front tire size: 7.00-12-12PR
Rear tire size: 6.00-9-10PR
Maximum lifting speed: 570mm/s (with load)
Maximum travel speed: 17km/h (with load)
The chassis and lifting system are designed to support frequent pallet handling and maintain stable operation throughout the work cycle.
Configuration and Attachments
The CPD25 can be configured according to the customer’s load, lifting height, and working environment. Optional configurations may include:
* Different mast heights
* Two- or three-stage masts
* Side shifters
* Fork positioners
* Extended forks
* Additional hydraulic functions
* Warning and safety equipment
* Optional tire configurations
The load center of heavy attachments may reduce the forklift’s remaining load capacity when working at height. OXPLO recommends confirming complete operating conditions before selecting masts and attachments.
OXPLO Support Services in the Philippines
OXPLO provides forklift selection assistance, technical support, and spare parts service to customers in the Philippines.
Customers can provide information such as maximum load capacity, required lifting height, pallet size, aisle width, daily operating hours, and delivery location. The LUYU team will then recommend suitable forklift, battery, mast, and attachment configurations based on this information.
Frequently Asked Questions
Q1: How long can a OXPLO electric forklift work on one charge?
A1: Operating time depends on battery capacity, load weight, lifting frequency, travel distance, gradients, temperature and operator behavior. OXPLO can estimate the expected working time after reviewing the customer’s duty cycle.
Q2: Is a lithium electric forklift suitable for continuous operation?
A2: Yes, when the battery and charging plan are correctly matched to the shift schedule. Opportunity charging or an alternative charging arrangement may be recommended for longer working hours.
Q3: Can the electric forklift be used outdoors?
A3: It can be used on suitable level, paved surfaces when weather and equipment conditions permit. For mud, gravel, potholes or uneven agricultural and construction sites, a rough-terrain forklift is generally more appropriate.
Q4: Does an electric forklift require maintenance?
A4: Yes. Although it eliminates many diesel-engine maintenance items, regular inspections are still required for the battery, charger, brakes, tires, hydraulic system, mast, forks and electrical connections.
Q5: Which capacity should I choose?
A5: The selection should be based on more than the maximum load weight. Load dimensions, load center, lifting height, attachments and residual capacity must also be considered.
Q6: Are spare parts and after-sales services available in the Philippines?
A6: OXPLO provides local technical support and maintains commonly used parts for selected models. Availability and service response times should be confirmed according to the machine model and customer location.
Request a Forklift Recommendation
Send OXPLO the following information to receive a suitable forklift recommendation:
* Maximum load weight
* Required lifting height
* Pallet or load dimensions
* Minimum aisle width
* Indoor or outdoor application
* Daily operating hours
* Delivery location in the Philippines
Our team will recommend the appropriate forklift capacity, battery configuration, mast and attachments for your operation.
