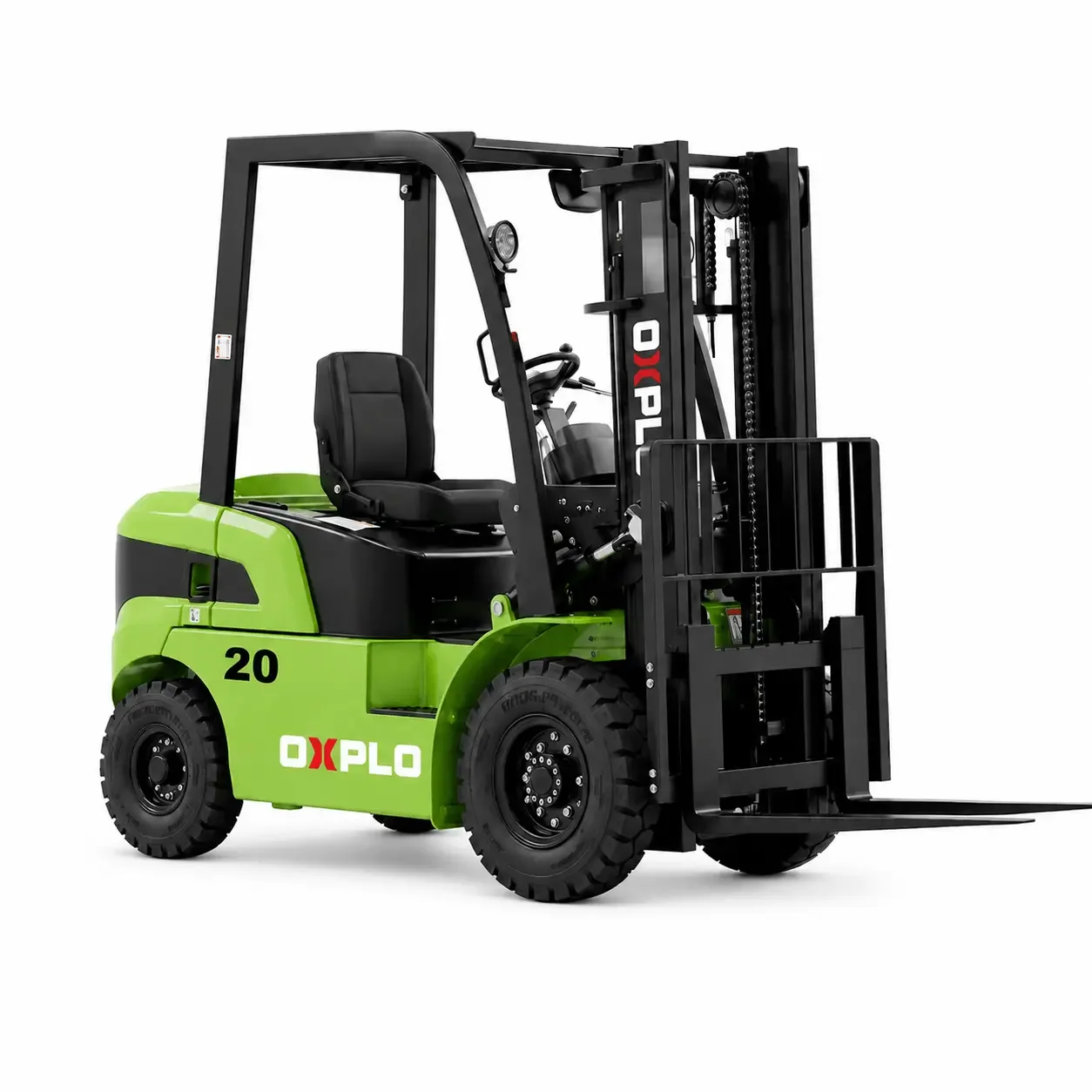

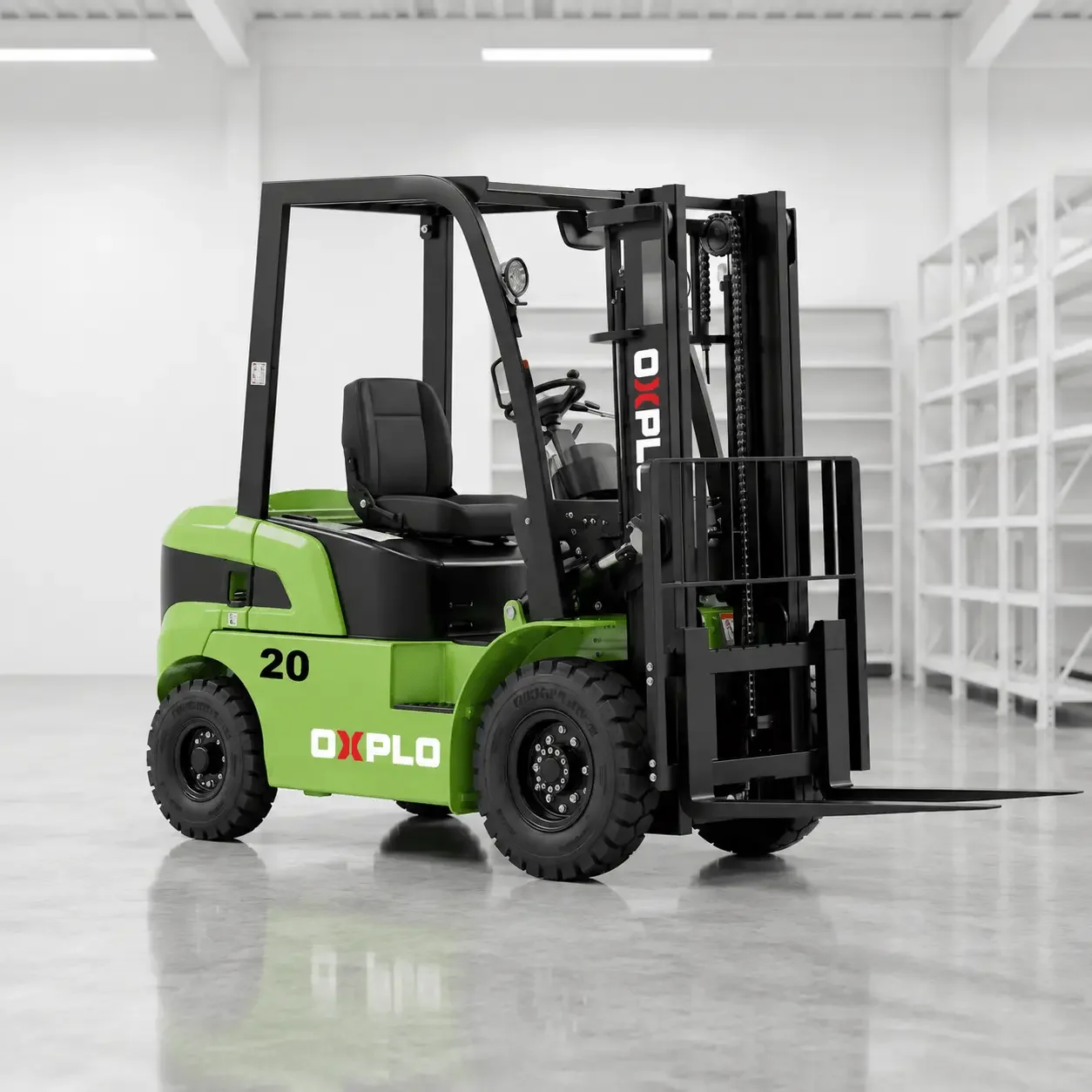

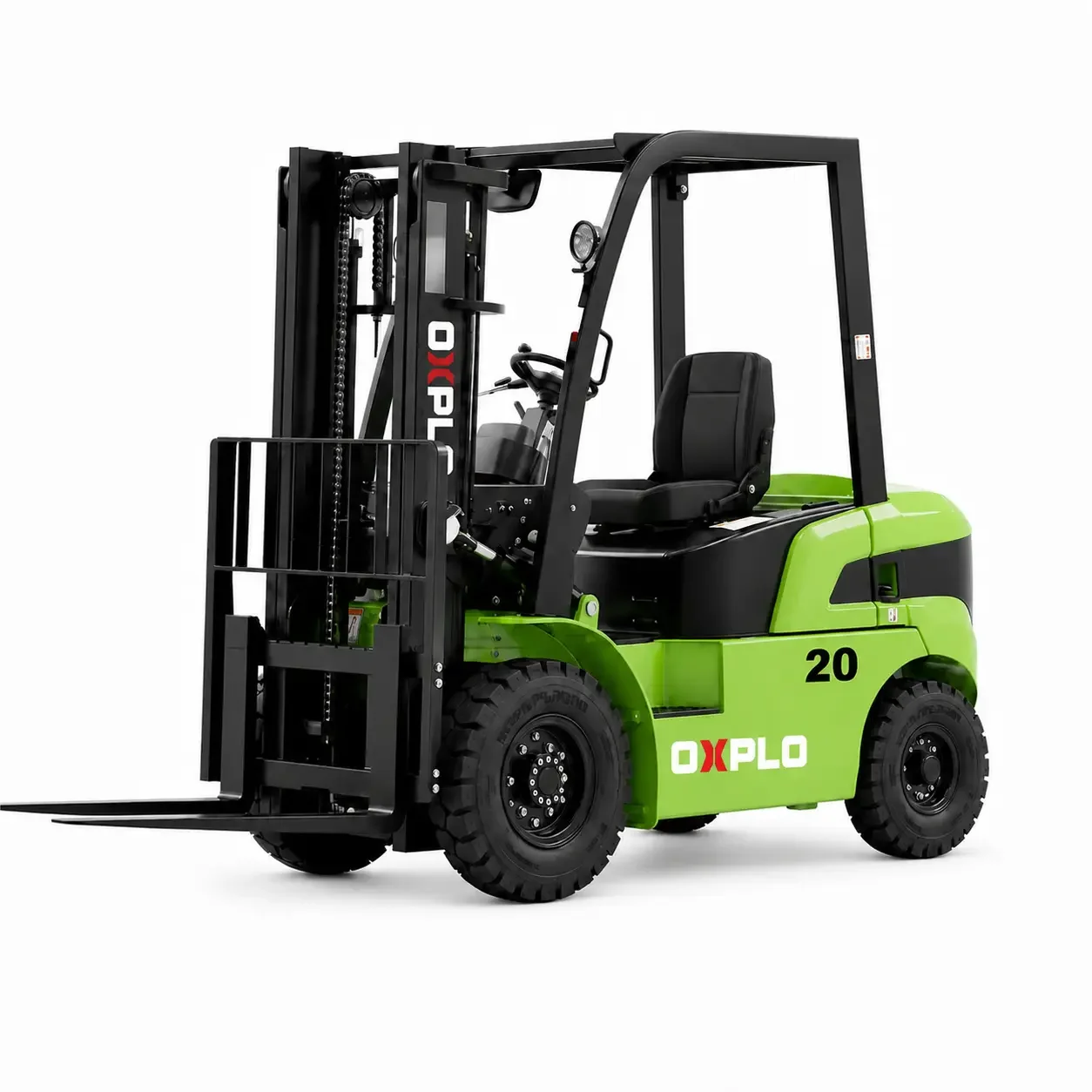

OXPLO CPD20 Electric Forklift
The OXPLO CPD20 is a compact 2-ton electric counterbalance forklift designed for efficient material handling in warehouses, logistics centers, manufacturing facilities and other indoor industrial environments.
Powered by a 76.8V/280Ah lithium-ion battery, the CPD20 delivers smooth acceleration, responsive lifting, quiet operation and zero tailpipe emissions. Its maneuverability, stable lifting performance and simplified maintenance requirements make it a practical alternative to conventional internal-combustion forklifts.
DETAILS
Core Performance Features
76.8V/280Ah Lithium Battery System
The CPD20 is equipped with a 76.8V/280Ah lithium-ion battery system that provides stable power for daily lifting and transport operations.
The intelligent Battery Management System monitors important battery conditions such as voltage, temperature and state of charge. It helps protect the battery against overcharging, over-discharging and overheating.
Flexible charging arrangements can be selected according to the customer’s shift schedule. Actual operating and charging times depend on load weight, lifting frequency, travel distance, operating temperature and charger configuration.
Clean and Quiet Operation
The electric drive system produces no tailpipe emissions and operates at a lower noise level than a diesel forklift. This makes the CPD20 suitable for:
- Indoor warehouses
- Logistics and distribution centers
- Manufacturing facilities
- Food and beverage storage
- Retail and supermarket warehouses
- Other noise-sensitive working environments
For cold-storage applications, the required battery, hydraulic oil and electrical configuration should be confirmed according to the actual operating temperature.
Maneuverability for Warehouse Operations
The CPD20 combines a compact body, responsive steering and controlled low-speed performance, making it suitable for pallet handling in warehouses and storage areas where working space is limited.
- Minimum outer turning radius: 2,190mm
- Minimum right-angle stacking aisle width: 2,230mm
- Overall forklift width: 1,164mm
These dimensions help the forklift maneuver efficiently in warehouse aisles and space-limited loading areas.
Actual aisle requirements may vary depending on pallet dimensions, fork length, mast type, attachment and required safety clearance.
Stable Lifting and Ramp Performance
The CPD20 has a rated lifting capacity of 2,000kg at a 500mm load center. It is designed for pallet transport, rack stacking, production-line supply and truck loading or unloading.
Under specified test conditions, its maximum gradeability is 20% with a full load and 20% without a load. This allows the forklift to handle suitable warehouse ramps and paved industrial yards.
The CPD20 is primarily intended for level or paved working surfaces. Muddy ground, deep gravel and severely uneven construction or agricultural sites generally require a dedicated rough-terrain forklift.
Operator Comfort and Safety
The operator area is designed to support comfortable and controlled daily operation. Clearly arranged controls, good mast visibility and responsive steering help the operator position loads accurately.
Depending on the selected configuration, optional safety equipment may include warning lights, reversing alarms, cameras and other operator-assistance features.
A digital instrument display provides essential operating information and helps the operator monitor forklift and battery conditions during operation.
Simplified Maintenance
Compared with an internal-combustion forklift, the CPD20 eliminates many routine engine-maintenance items, including engine oil changes, fuel-filter replacement and battery watering.
The accessible battery compartment allows technicians to inspect the lithium battery, controller and electrical connections more conveniently. The Battery Management System also helps identify abnormal battery conditions and supports preventive maintenance.
However, regular inspection is still required for:
- Battery and charging system
- Tires and wheel components
- Brakes and steering system
- Hydraulic oil and hoses
- Mast rollers and lifting chains
- Forks and attachments
- Electrical connections
This simplified service structure can reduce the daily maintenance workload and help improve equipment availability.

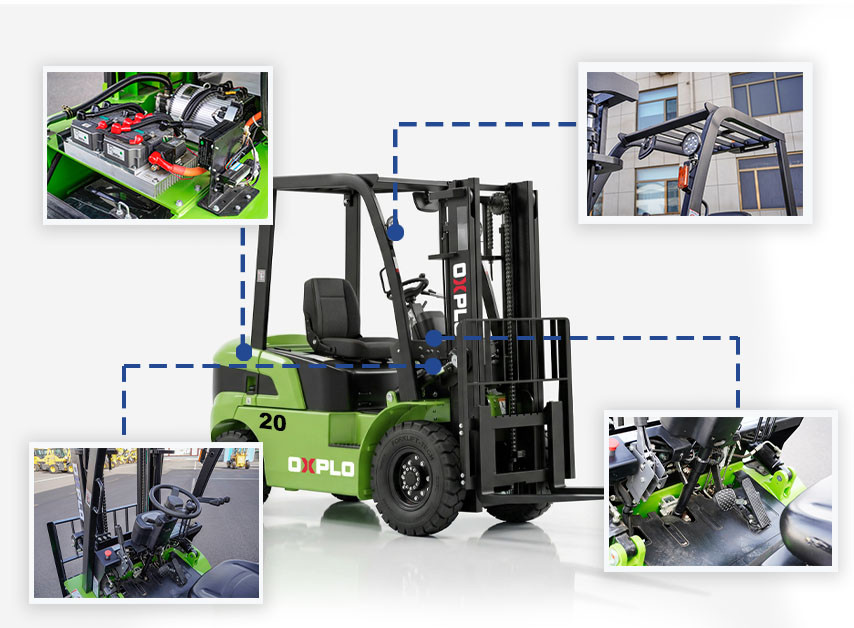

Durable Industrial Construction
The CPD20 uses a reinforced mast, stable chassis structure and heavy-duty pneumatic tires for daily industrial material handling.
- Front tire size: 7.00-12-12PR
- Rear tire size: 6.00-9-10PR
- Maximum lifting speed with load: 530mm/s
- Maximum travel speed with load: 17km/h
- Total forklift weight: 3,280kg
The chassis and lifting system are designed to support frequent pallet handling while maintaining stable operation throughout the working cycle.
Configurations and Attachments
The CPD20 can be configured according to the customer’s load, lifting height and working environment. Available options may include:
- Different mast heights
- Two-stage or three-stage mast
- Side shifter
- Fork positioner
- Extended forks
- Additional hydraulic functions
- Warning and safety equipment
- Alternative tire configurations
The weight and load center of an attachment may reduce the forklift’s residual lifting capacity at height. LUYU recommends confirming the complete working conditions before selecting the mast and attachment.
OXPLO Support in the Philippines
OXPLO provides forklift selection assistance, technical support and spare-parts services for customers in the Philippines.
Customers can provide their maximum load weight, required lifting height, pallet dimensions, aisle width, daily operating hours and delivery location. The OXPLO team will then recommend a suitable forklift, battery, mast and attachment configuration.
Frequently Asked Questions
Q1: How long can a OXPLO electric forklift work on one charge?
A1: Operating time depends on battery capacity, load weight, lifting frequency, travel distance, gradients, temperature and operator behavior. OXPLO can estimate the expected working time after reviewing the customer’s actual duty cycle.
Q2: Is the CPD20 suitable for continuous operation?
A2: It can support extended operating schedules when the battery capacity and charging plan are correctly matched to the customer’s shift arrangement. Opportunity charging or another charging arrangement may be recommended for longer working hours.
Q3: Can the CPD20 electric forklift be used outdoors?
A3: It can be used on suitable level and paved surfaces when weather and equipment conditions permit. For mud, deep gravel, potholes or uneven agricultural and construction sites, a rough-terrain forklift is generally more appropriate.
Q4: Does an electric forklift require maintenance?
A4: Yes. Although the CPD20 eliminates many diesel-engine maintenance items, its battery, charger, brakes, tires, hydraulic system, mast, forks and electrical connections still require regular inspection.
Q5: Is a 2-ton electric forklift suitable for my loads?
A5: The decision should be based on more than maximum load weight. Load dimensions, load center, required lifting height, attachments and residual capacity must also be considered.
If the normal load frequently approaches 2,000kg, has an extended load center or must be lifted to greater heights, a higher-capacity model may provide a more suitable operating margin.
Q6: Are spare parts and after-sales services available in the Philippines?
A6: OXPLO provides local technical support and maintains commonly used parts for selected models. Parts availability and service response times should be confirmed according to the machine model and customer location.
Request a Forklift Recommendation
Send OXPLO the following information to receive a suitable forklift recommendation:
- Maximum load weight
- Required lifting height
- Pallet or load dimensions
- Minimum aisle width
- Indoor or outdoor application
- Daily operating hours
- Delivery location in the Philippines
Our team will recommend the appropriate forklift capacity, battery configuration, mast and attachments for your operation.
